The Emme Room-By-Room system is an HVAC zoning system that can work with split systems, roof top units, as well as with VAV boxes in larger buildings. Here's how it works:
1. Wireless Smart Controller
A wireless Smart Controller is placed in every room. This Smart Controller takes a temperature reading every 30 seconds and sends that reading to the Central Controller / Display Unit. The Smart Controller can also be used by the room’s occupant to override the system schedule if necessary.

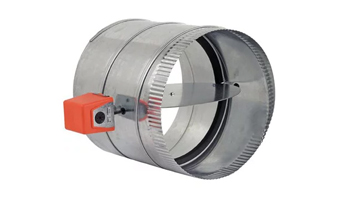

2. Modulating Damper
A rugged modulating damper which can open and close in 1% increments independently in every duct run. The modulating damper is controlled by the Central Controller – Display Unit, which opens and controls each individual damper based on the comfort and air flow needs in each individual room.
3. Central Controller - Display Unit
A sophisticated Central Controller – Display Unit receives temperature inputs from all the Smart Controllers and Smart Sensors and then independently opens and closes the modulating dampers in 1% increments in each duct run in order to make sure the temperature in each room is within the desired set points. Since the Central Controller knows the capacity of the HVAC equipment and the size of each duct run, the Central Controller is programmed to make sure the HVAC equipment always operates within the manufacturer’s specifications for air flow and temperature.
The Emme system works with most HVAC equipment and can be installed into existing buildings without opening walls or remodelling. The Emme system comes complete with a wi-fi enabled web portal that allows building maintenance personnel to remotely investigate complaints and make adjustments to the system, thereby avoiding unnecessary travel. The alert system informs maintenance personnel when the system is operating outside normal conditions so that the system can be repaired to prevent discomfort and the need for expensive emergency service.
Rooftop Units
Controlled directly by Emme Room-By-Room

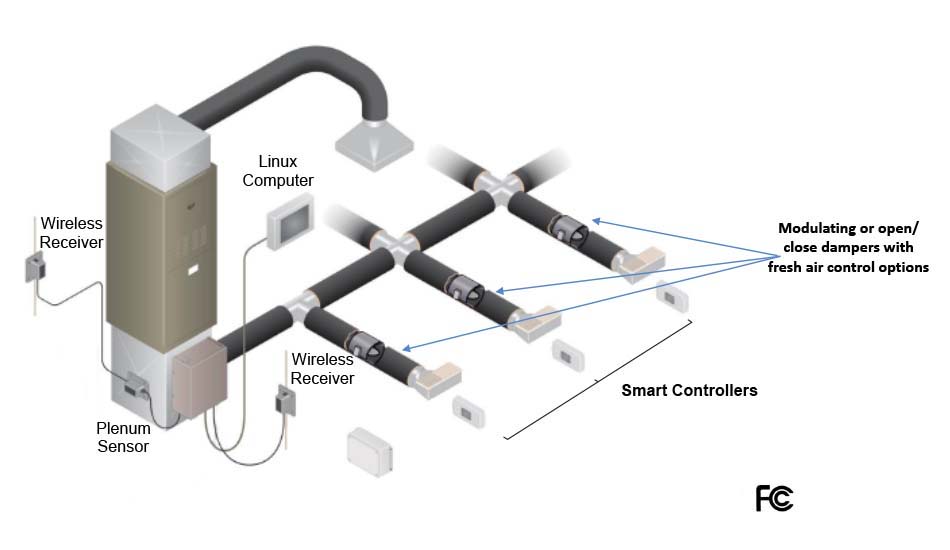

Split System
Controlled directly by Emme Room-By-Room
Large Central Plants
Central boilers, Cooling Towers, and Chillers
Emme controls the air handlers or VAV boxes:
Directly if no viable existing BMS system
Indirectly by providing control directives to a 3rd party BMS

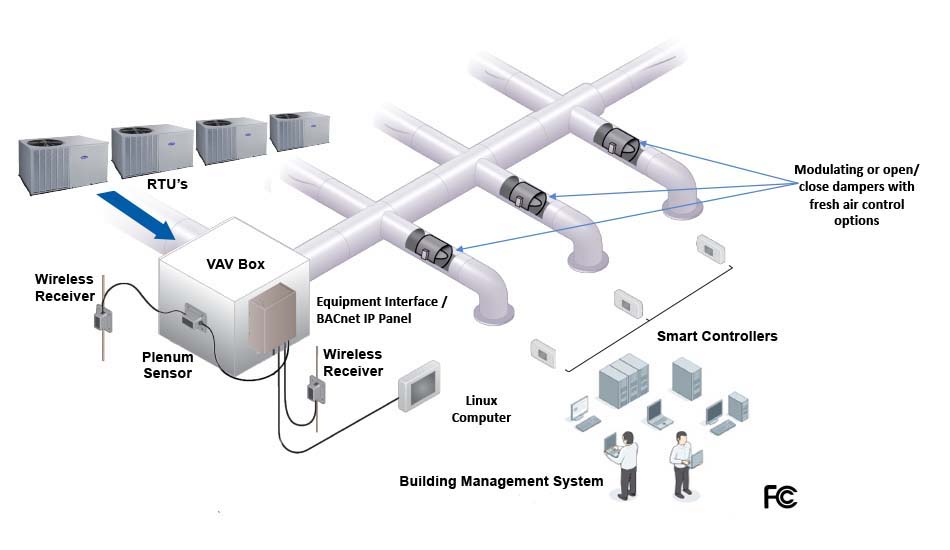

Rooftop Units with VAV Boxes
Emme controls the VAV boxes
Directly if no viable existing BMS system
Indirectly by providing control directives to a 3rd party BMS

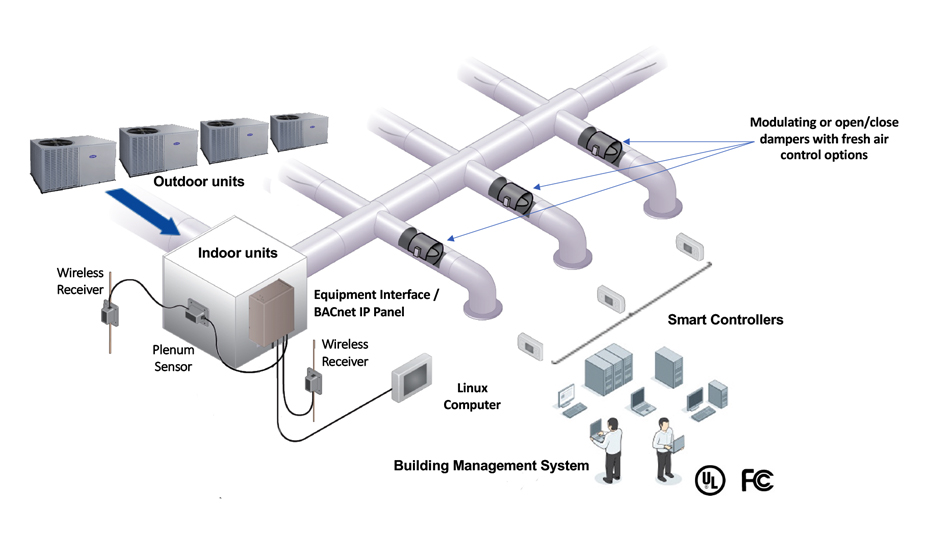

Emme integration with BMS/VRF (Variable Refrigerant Flow)

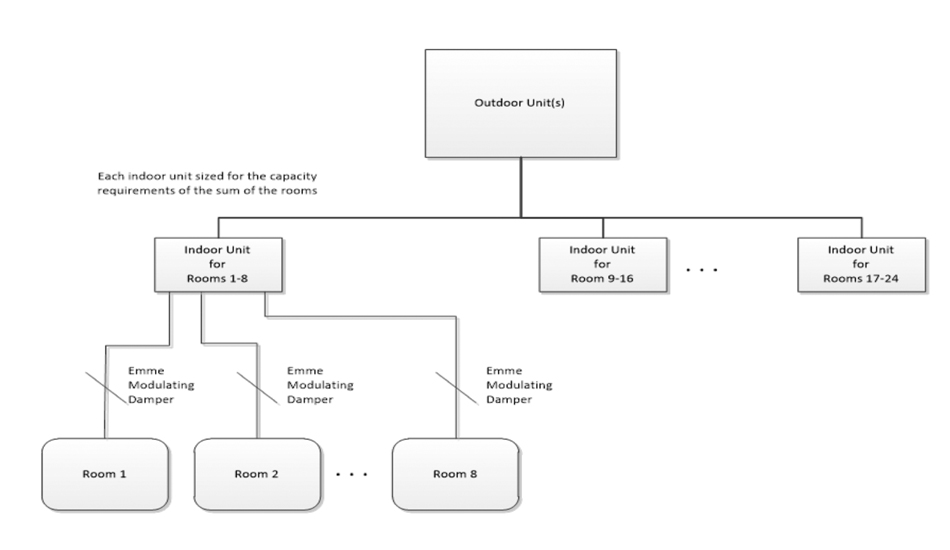

VRF Options with Emme BMS and Room-By Room capabilities
